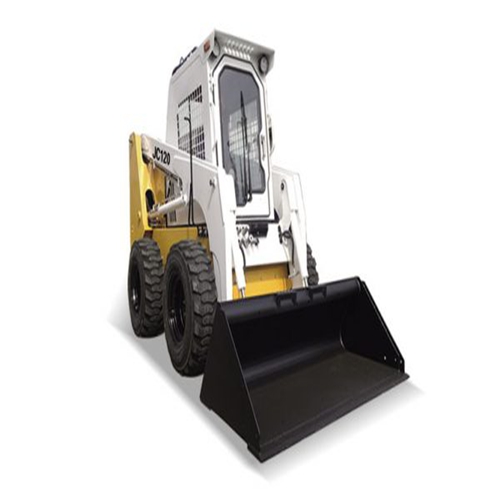

zhs skid steer loader JC120
Developing an unique solution is easy here.
Advanced production management system
Full capabilities to rely on
Best possible prices for you
Standing the test of time
Services beyond expectations
Description
Package Information
Inquiry
| Item | JC120 |
| Rated operating capacity(kg) | 1200 |
| Bucket capacity(m3) | 0.6 |
| Hydraulic pump flow (L/min) | 88/140 |
| Engine power (hp) | 125 |
| Weight(kg) | 3800 |
| Max travel speed (km/h) | 12 / 18 |
| Grade ability | 20 |
| Tire | 12-16.5 |
| Fuel/hyd oil capacity (L) | 90/90 |
| Height at maximum extension | 4070 |
| Hinge pin height (mm) | 3150 |
| Total height (mm) | 2160 |
| Length with bucket (mm) | 3700 |
| Length without bucket(mm) | 3000 |
| Width with bucket (mm) | 2030 |
| Track width (mm) | 1500 |
| Wheelbase (mm) | 1020 |
| Ground clearance (mm) | 205 |
| Dumping angle | 40 |
| Dumping height (mm) | 2450 |
| Maximum reach (mm) | 700 |
