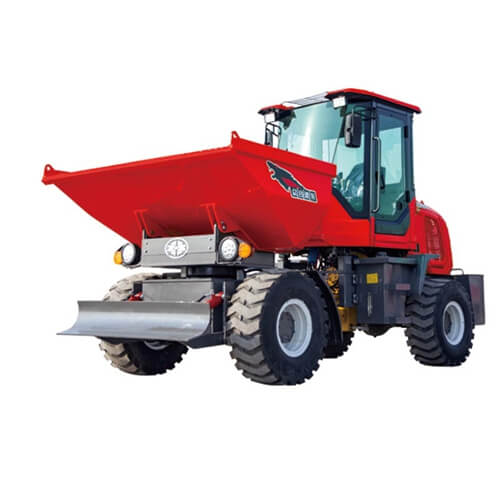

3.5ton Site Dumper
Developing an unique solution is easy here.
Advanced production management system
Full capabilities to rely on
Best possible prices for you
Standing the test of time
Services beyond expectations
Description
Package Information
Inquiry
| 35D | ||
| Vehicle size (L×W×H) | mm | 4900×1850×2700 |
| Wheelbase | mm | 2500 |
| Total weight | kg | 3300 |
| Driving form | 4-wheel drive | |
| Tires | 20.5-16 | |
| Drive axle | Wheel side Axle | |
| Engine | kw | YN25GBZ |
| Engine Power | 55 | |
| Gearbox | Auto Gearbox | |
| Travel speed | km/h | 30 |
| Max Gradeability | ° | 30 |
| Mini Turning Radius | mm | 4500 |
| Minimum ground clearance | mm | 250 |
| dipper capacity | m³ | 1.6 |
| Tipping bucket rotation angle | ° | ±90°(Optional) |
| Rated load | kg | 3500 |
